RAM ProMaster Cargo Van rear HVAC systems

RAM ProMaster Cargo Van Rear HVAC

STANDARD TIE-IN HVAC – WEBASTO LONDON

VANCOUVER COOLING-ONLY KITS

Low profile, OE Approved, rear heating and cooling unit.

RAM ProMaster City rear cargo HVAC systems

NEW FOR 2018!

RAM ProMaster City®

STANDARD TIE-IN HVAC – WEBASTO OAKLAND

Oakland systems are air conditioning-only, but can be paired with Webasto Fuel-Operated Heaters for a complete rear HVAC system for RAM ProMaster City vehicles.

LONDON
The London unit has a cooling capacity of 32,500 BTU and heating capacity of 44,500 BTU. This unit packages well in the driver’s compartment bulkhead area with air delivered rearward. This location offers minimal refrigerant, coolant and condensate drain plumbing and wire harness routing. The unit’s low profile of 7 inches will also allow fit up in the rear of the vehicle with air delivered forward. A front panel with orbital directional vents is standard for air delivery. Other ducting options are described below.

VANCOUVER
The Vancouver unit has a cooling capacity of 32,500 BTU using R134a refrigerant and a low profile of just 6.5 inches. It does not have heating capability.

OAKLAND for RAM ProMaster City®
Developed specially for the RAM ProMaster City, the Vancouver unit by Webasto has a cooling capacity of 13,500 BTU using R134a refrigerant and a low profile of just 4.9 inches. It does not have heating capability, but can be paired with a Webasto fuel-operated heater for a complete rear cargo HVAC solution for RAM ProMaster City vehicles.

London HVAC for Dodge RAM Promaster

London Evaporator

Specifications London Evaporator
Cooling Capacity 32,500 BTU
Heating Capacity 44,500 BTU
Refrigerant R134a
Nominal Voltage 12.0 V
Max. Airflow Evap. Blower. 471 cfm
Max Power Consumption 21 A @ 12V
Dimensions L x W x H in 21.7 x 15.7 x 7.1
Weight 17 lbs
Vancouver AC

Vancouver Evaporator

Specifications Vancouver Evaporator
Cooling Capacity 32,500 BTU
Heating Capacity
Refrigerant R134a
Nominal Voltage 12.0 V
Max. Airflow Evap. Blower. 471 cfm
Max Power Consumption 22 A @ 12V
Dimensions L x W x H in 19.7 x 14.2 x 6.5
Weight 14.8 lbs
Oakland Webasto unit for RAM ProMaster City

Oakland Webasto unit for RAM ProMaster City

Specifications Oakland Evaporator
Cooling Capacity 13,500 BTU
Heating Capacity
Refrigerant R134a
Nominal Voltage 12.0 V
Max. Airflow Evap. Blower. 265 cfm
Max Power Consumption 7.4 A @ 12V
Dimensions L x W x H in 15.4 x 9.25 x 4.9
Weight 7.7 lbs

Extreme Climate Rear HVAC – Webasto models London and Capri

For applications that require maximum cooling capacity, the Extreme Climate Stand Alone HVAC shares the same components as the Standard Tie-in Rear HVAC system (London), with the addition of an auxiliary engine driven compressor, compressor mount kit and a roof mounted/low-profile condenser (Capri).

Vehicle Integration - Cooling
London Rear HVAC is integrated with an independent refrigerant loop consisting of auxiliary compressor and Capri condenser. For minimal install time and plumbing routing, the Capri condenser can be mounted directly above the London Rear HVAC system on the roof of the vehicle. Optional Prado under chassis mount condenser is also available.

Vehicle Integration - Heating
Heating integration and function is identical to Standard Tie-in Rear HVAC.

London Evaporator for RAM ProMaster

London Evaporator

Specifications London Evaporator
Cooling Capacity 32,500 BTU
Heating Capacity 44,500 BTU
Refrigerant R134a
Nominal Voltage 12.0 V
Max. Airflow Evap. Blower. 471 cfm
Max Power Consumption 21 A @ 12V
Dimensions L x W x H in 21.7 x 15.7 x 7.1
Weight 17 lbs
Capri Rooftop Condenser for RAM ProMaster

Capri Condenser

Specifications Capri Rooftop Condenser
Heat Rejection Capacity 35,800 BTU/h (10.5 kW)
Refrigerant R134a
Nominal Voltage 12.0 V
Max Power Consumption 18 A
Dimensions L x W x H in 32 x 23.6 x 5.9
Weight 26.5 lbs
Prado Optional Under Chassis Condenser

Prado Optional Under Chassis Condenser

Specifications Prado Optional Under Chassis Condenser
Heat Rejection Capacity Coming soon
Refrigerant Coming soon
Nominal Voltage Coming soon
Max Power Consumption Coming soon
Dimensions L x W x H in Coming soon
Weight Coming soon

Control Panel Detail

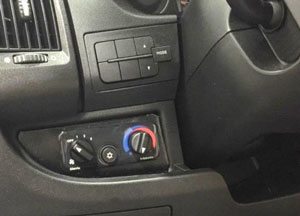

A manual controller with on/off switch, variable fan speed and variable temperature control is standard. The controller is packaged in-dash. Control unit also can be located anywhere inside the vehicle.

Control Detail
Control Unit

ModulAir Universal Ducting

Optional low-profile (less than 2“) Webasto ModulAir, ceiling mount air ducting kit - connects to London Tie-in or Kiev high capacity system for evenly distributed air delivery. The kit is available in black or gray and sections can be ordered individually for optimal lengths.

Webasto Modulair Universal Ducting
Ceiling Air Distribution unit installed by Cicioni

Fuel-Operated Heaters

Interior heating solutions for mobile work spaces

Custom Air Heater Installations

The photos below show a custom installation of a Webasto compact Air Top 2000 STC air heater in a 2016 Mercedes-Benz Sprinter 170E Super High Roof by the team at Cicioni.

In this case, the heater was installed under the passenger-side seat base. The compact design of the AT 2000 STC – combined with the skill and experience of the Cicioni team – makes this a great choice for heating the rear of your Sprinter. Cicioni's experienced team can identify and locate the best options for installation of any rear cargo HVAC system.

The AT 2000 STC also offers low fuel consumption. This heater heats the air in the interior or cargo space quickly and quietly and keeps it constant at the chosen working temperature. The unit offers recirculation and fresh-air modes.

 Webasto compact Air Top 2000 STC air heater installed under the passenger-side seat in a 2016 Mercedes-Benz Sprinter 170E Super High Roof by the team at Cicioni..
 Webasto compact Air Top 2000 STC air heater installed under the passenger-side seat in a 2016 Mercedes-Benz Sprinter 170E Super High Roof by the team at Cicioni.
Webasto AT40 EVO 12-volt D - diesel fuel operated heater

Van Liners

Cicioni offers custom installation of van liners, including Wall Liners and Head Liners. They protect the interior and are easy to clean.

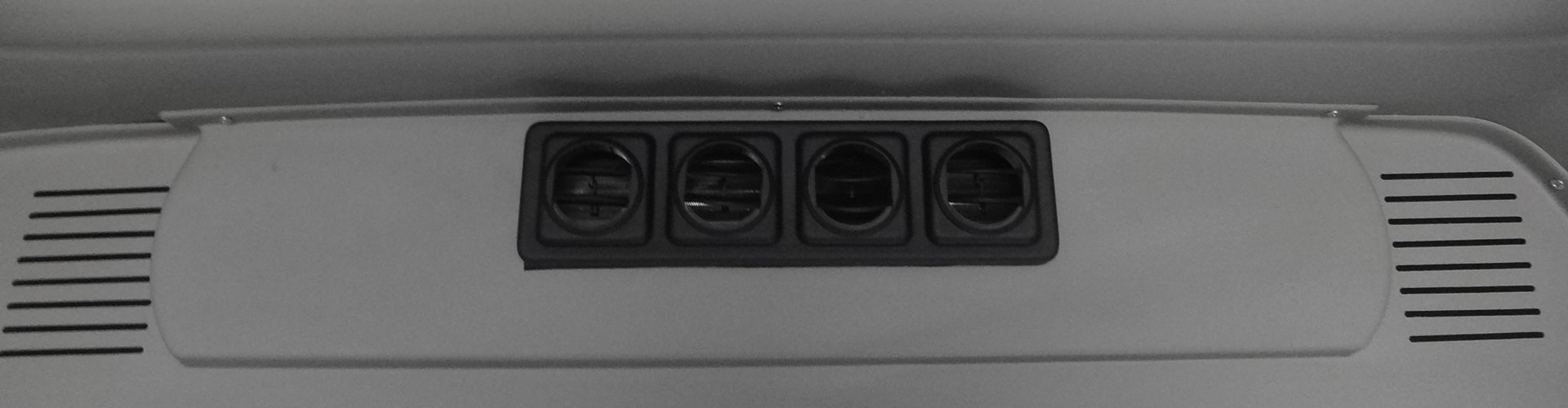

The following image shows an air distributor integrated into the liner located above the storage area available on passenger van ProMaster vehicles only with optional customer preferred package 21A which includes the overhead storage shelf. Fits only ProMaster 2500 passenger vans with a 159" wheelbase and high roof.

An air distributor integrated into the liner located above the storage area available on passenger van ProMaster vehicles only with optional customer preferred package 21A which includes the overhead storage shelf. Fits only ProMaster 2500 passenger vans with a 159" wheelbase and high roof.

Partitions

Van partitions divide the cargo van into two distinct zones: the cab (work zone) and the cargo area (storage of tools, equipment, and parts). In the event of an unplanned stop or collision, the cargo van partition provides a barrier between the driver and any occupants in the cab from the contents in the cargo area. Cicioni will custom install a partition in your vehicle, while also installing insulation, body liners and headliners, and HVAC and ventilation systems for a complete solution for your vehicle.

New for 2018! Sortimo by Knapheide van partitions for RAM ProMaster!

Insulation

Fully insulated options available.

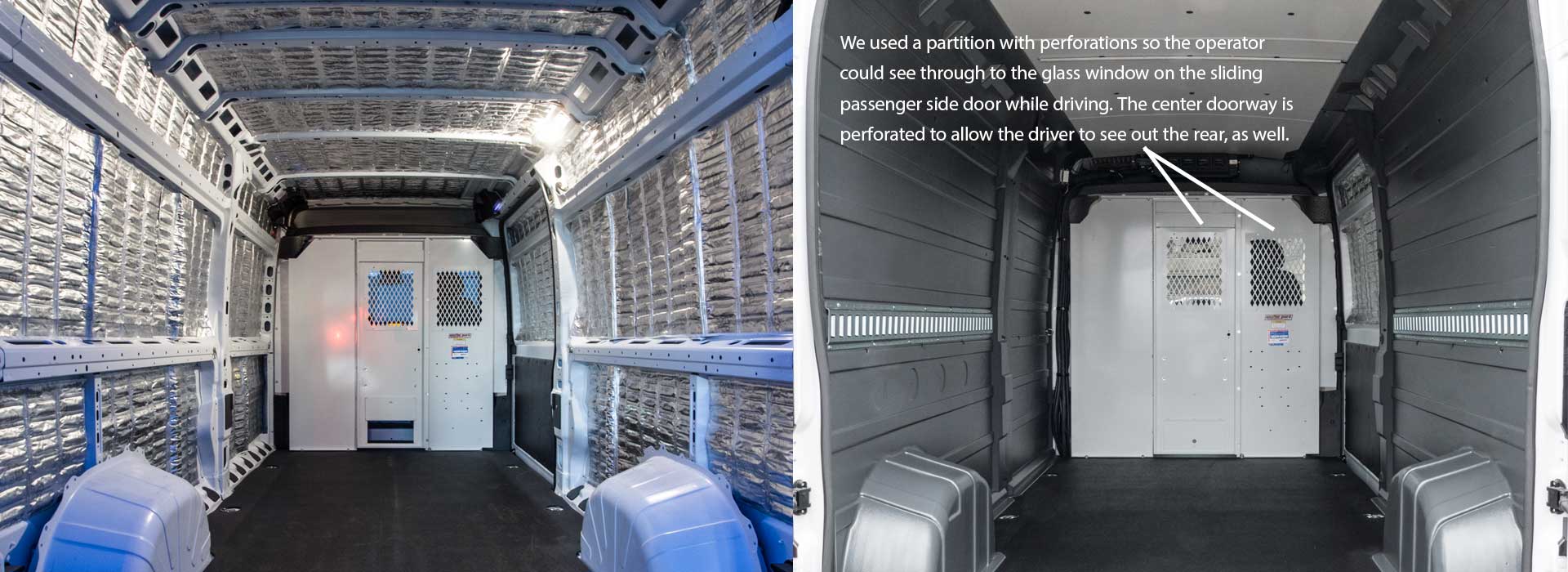

RAM ProMaster insulation installation, before and after van liner and headliner installation.

Auxiliary Battery Packages

When adding options to your vehicles that require power, it is unsafe to use the OEM start battery as your source because the OEM battery is designed to support vital vehicle functions, such as starting the engine and powering your lighting. It is our position that additional options should be powered by an auxiliary battery package – that we have designed and installed by following the manufacturer's guidelines – that will give you power based on the battery's reserve capacities and regenerated by the vehicle's alternator. Integrated along with this is a function that will allow you to parallel start your vehicle from the auxiliary battery. This is an asset for you, in the event that you leave your lights on accidentally. In this event, you could start your vehicle without needing assistance.

Auxiliary Battery for Cargo HVAC
Diagram illustrating the installation location of auxiliary battery.
Automatic charging relay for auxiliary battery installations.

Ventilation Fans

As an additional safety measure, Cicioni also offers ventilation fan installations.

Fresh air and water can save the lives of any pets or animals contained inside the vehicle.

Ventilation fan for Sprinter, Promaster, and Transit
Ventilation fan for Sprinter, Promaster, and Transit
Ventilation fan for Sprinter, Promaster, and Transit

LED lighting

Custom LED lighting installations by Cicioni can help illuminate the interior of your vehicle, making it more useful and safer.

Motion-sensor LED lighting is also available, so the lighting turns on automatically upon entering the cargo area. We use only the best LED lighting for longevity and quality. Made in the USA.

Sprinter LED Lighting
A custom LED lighting installation by Cicioni.
Generator packages for engine-off power for HVAC cooling and heating systems for Ford Transit, Mercedes-Benz Sprinter, RAM ProMaster, and Nissan NV.

Generator solutions for engine-off HVAC

Custom-engineered generator packages for engine-off HVAC cooling & heating systems for Ford Transit, MB Sprinter, RAM ProMaster, and Nissan NV

Need to cool or heat the rear cargo area of your vehicle without having your vehicle running?

Cicioni has the perfect custom-designed and engineered solution:

a rear-mounted, swing-out generator.

This solution has been custom-designed and professionally engineered by Cicioni Commercial Vehicle HVAC to be the ideal engine-off power solution for Ford Transit, MB Sprinter, RAM ProMaster, and Nissan NV cargo vehicles.

Ideal for applications such as:

  • Animal transport
  • Show animal transport
  • Flower delivery vehicles
  • Other delivery vehicles with perishable cargo
  • Work vehicles for businesses such as:
    • Electricians
    • Telecommunications
    • Construction
    • Maintenance
    • Other industries who must have workers in the field year-round, hot or cold

The rear-mounted generator is enclosed in a metal housing to help protect it from the elements and prying eyes. With the pull of a pin, it can swing out of the way, so the vehicle's barn doors can be easily opened for rear access. LED lighting and reflectors complete the look and make it safe.

Side view of rear-mounted generator on a Ford Transit cargo van.

See what we can do!

Watch this video to see how Cicioni exceeds customer expectations. In this case, we are showcasing a total upfit of a 2018 Ford Transit 350 High Roof Cargo Van w/ 148 in wheelbase. (Of course, we do RAM ProMaster’s, too! We’re working on more application-specific videos like this).

Alterations included:

  • Rear cargo air conditioning
  • Rear cargo ventilation fan
  • Rear cargo insulation
  • Rear cargo wall liner and head liner
  • Rear cargo waterproof flooring
  • Rear cargo LED lighting
  • Rear cargo van partition
  • External engine-off generator with swing mount

Need more power?

Now offering MASE generators for 3000+ watt solutions

Mase generators for Ford Transit, MB Sprinter, RAM ProMaster, and Nissan NV.

Some vehicle owners may have demanding shore power requirements that go beyond our traditional generator offerings.

When you need more than 3000 watts of engine-off power, we now offer commercial-grade, high-power Mase generators!

Since being founded in 1970, Mase Generators has engineered a growing line of heavy duty generators for a range of applications. We will find the right make and model to meet your requirements.

We invite you to contact Giuseppe Fava at Mase Generators (email fava@masenorthamerica.com or call 1-754-703-5153) for a recommendation on a Mase generator that will meet your specifications! Be sure to mention Cicioni Commercial Vehicle HVAC. In the Northeast United States, you can work with Cicioni for discounted installation. For other parts of the nation, Giuseppe will have a recommendation.

Need a generator package for your Mercedes-Benz Sprinter, Ford Transit, RAM ProMaster, or Nissan NV?
Call Al Cicioni at (570) 401-7697.

Dodge Ram ProMaster
Rear Cargo Air Conditioning systems


For system information and installation:
 Email Al Cicioni
 570-401-7697

NATIONWIDE SALES AND SERVICE

Specifications

CLICK TO ENLARGE

How to measure Dodge RAM Promaster Roof Heights
How to measure Dodge RAM Promaster Roof Heights

Vehicle Drop-off Information

FREE AIRPORT TRANSPORT
We offer free transportation to PHL, EWR, ABE, and MDT. Most clients report flights into Philadelphia are very reasonably priced.

Dropping off a vehicle? We’ll take you to the airport afterwards so you can get home.

Picking up your completed vehicle? We'll pick you up at the airport and drive you to our Hazleton, PA, facility.

HOTELS
We have a special rate with the Comfort Inn and Fairfield Marriot in Hazleton. Contact us! We will also provide transportation to and from the hotel.

VEHICLE RENTAL
We offer transportation to and from our local Enterprise vehicle rental location.

TRANSPORT COMPANY
Ask your dealer for a recommendation on a reputable transport dealer.

RAM ProMaster 2500 Passenger Van with Rear HVAC – Webasto by Cicioni

2017 RAM 3500 ProMaster Cargo 159 in. WB, High Roof, 3.6L V6

2017 RAM 2500 ProMaster Cargo, 159-inch wheelbase, high roof – Webasto London heat and A/C system, Dometic 110 System, Dometic vents
